Description:

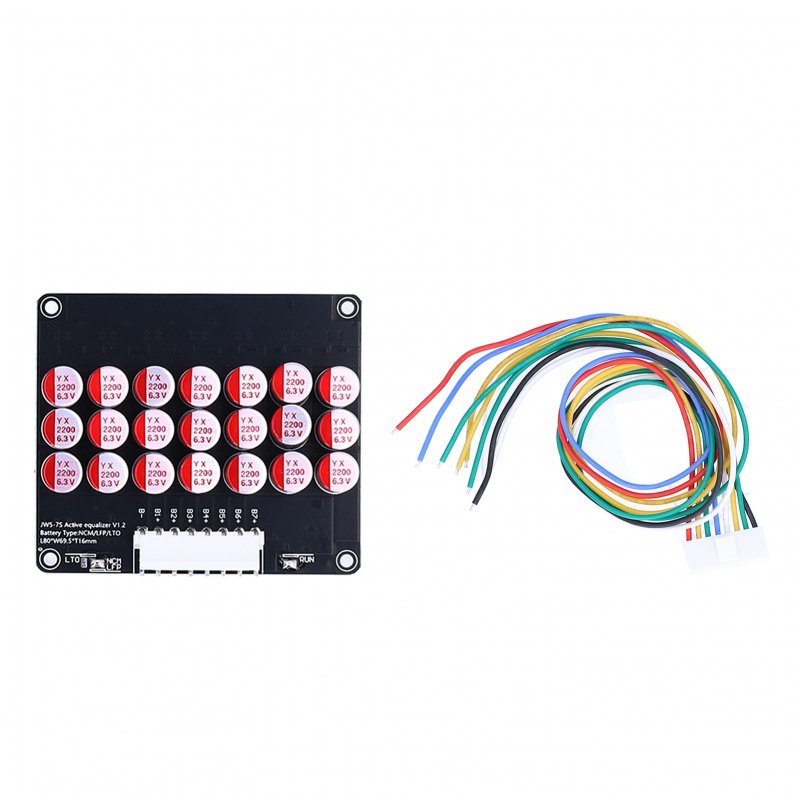

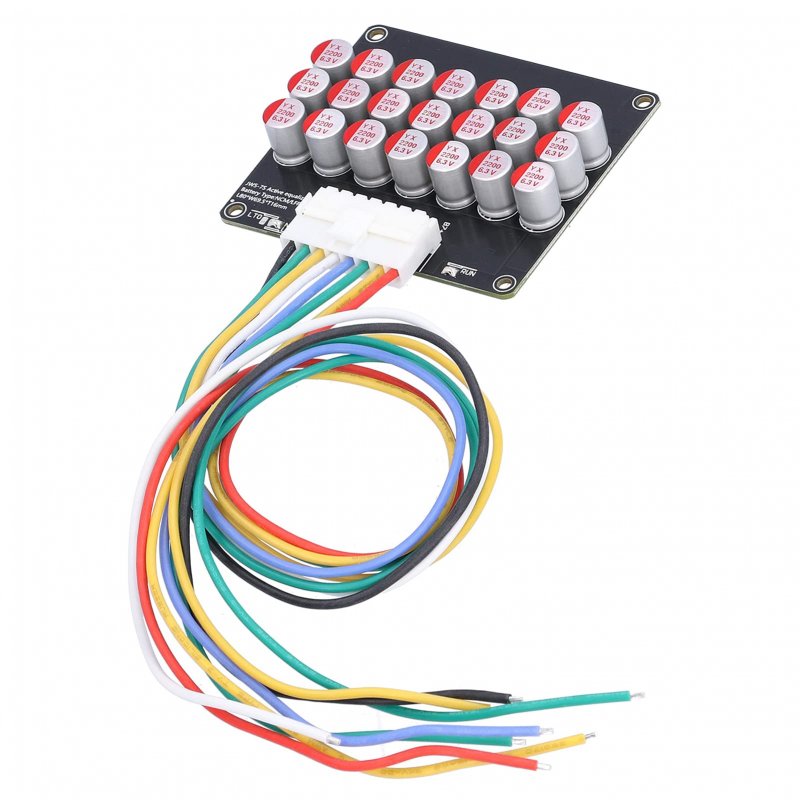

For NCM LFP LTO Adopting ultra low internal resistance MOS and premium Printed Circuit Board to ensure efficient balance effect. This active equalizer can be applied in ternary lithium battery, lithium iron battery, and LTO battery. Applicable Serial Number 5/6s 6/7s 7/8s.. Original Design Using the original ultra-low internal resistance MOS, equalizing current 0-5.5A, the more balanced the battery, the lower the current.. Capacitance Principle No external power supply is required,The working principle is Capacitor fit transfers the charge transporter, use the internal energy transfer of the battery to transfer and balance the entire battery pack.the equalization board can be connected to the battery to start the equalization work.. With Sleep Protection The working voltage is 1.8V to 4.2V. When the voltage is lower than 3.0V, it will automatically stop and enter the dormant state, and the standby power consumption is less than 0.1mA.. Notice Before connecting the equalization board, check whether each piece of wiring is correct, insulation between the bottom board and the battery connection terminals is required to prevent burnout..
