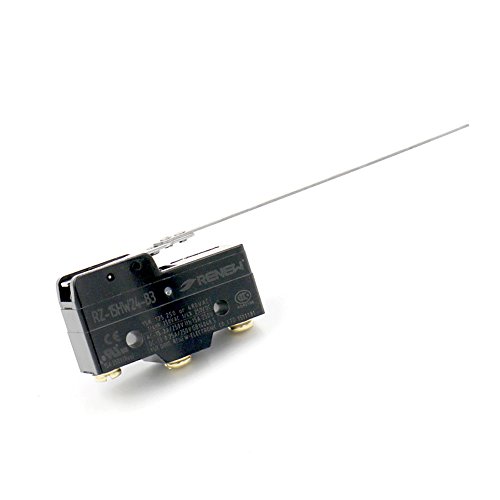

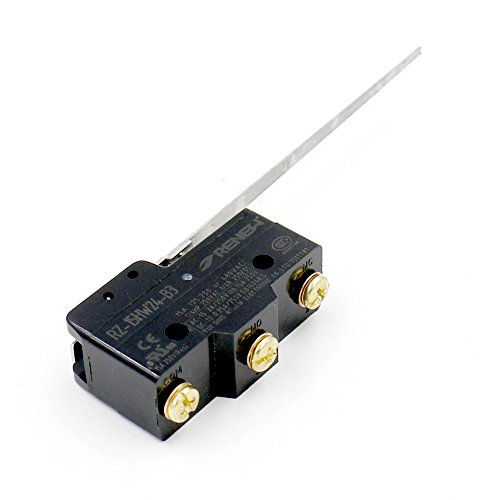

3 screws terminals for wires fixing use, can be applicable to both AC control circuits and DC control circuits. This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plant. Can be used in safety circuits, control circuit and auxiliary circuit for terminal limit protection. Safe and reliable, small installation size ,the products are for general use. Model # Z-15HW24-B Features: Model: RZ-15HW24-B3; Terminal Type : 3 Screw Terminal Actuator Type : Long Hinge Slim Lever;Contact Type : 1 NO, 1 NC(SPDT) Ui : 380V;Ith : 15A; Main Body Size : 47 x 29 x 17mm / 1. 9" x 1. 1" x 0. 7"(L*W*H); Overall Height : 3. 2cm / 1. 3"; Material : Metal, Plastic Weight : 41g ;Package Content : 1 x Limit Switch.
