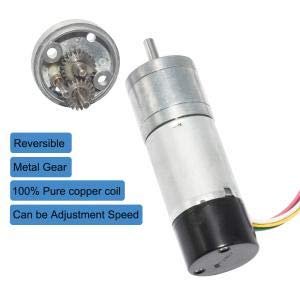

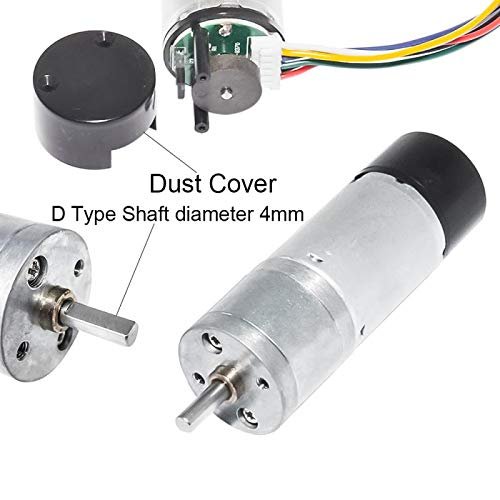

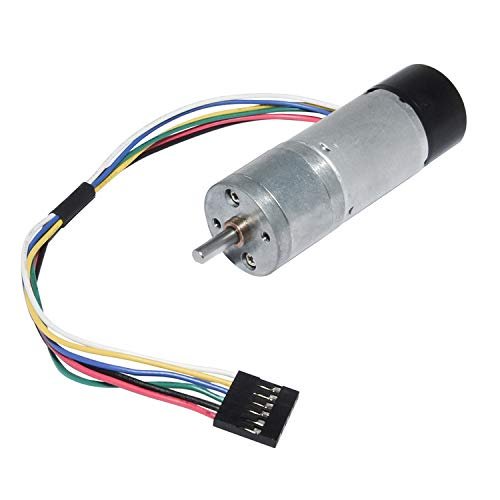

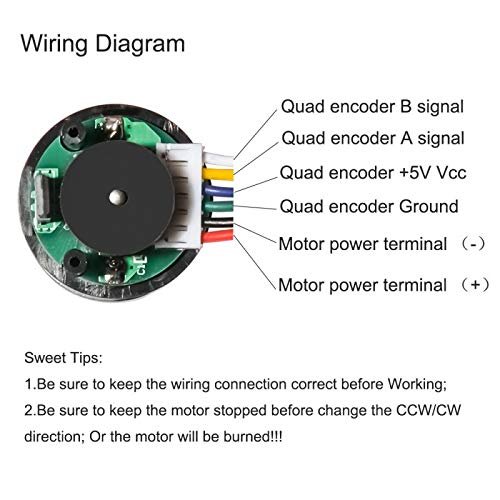

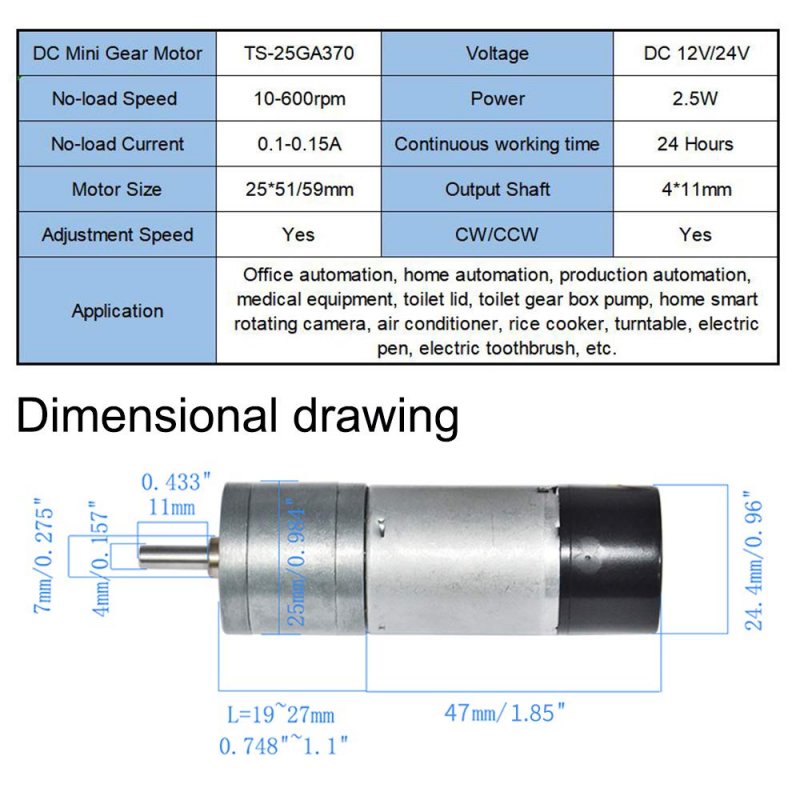

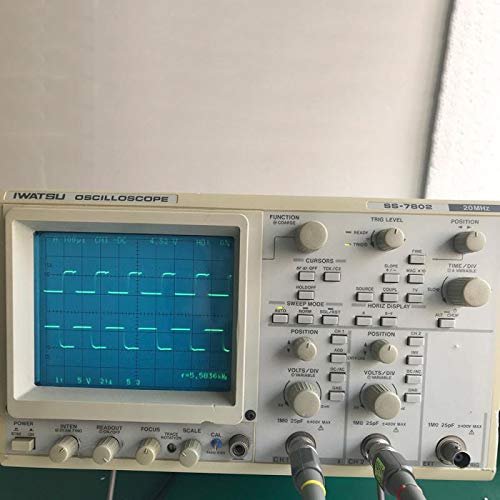

Product type: DC Gear motor with two-channel Hall effect encoder;Rated Voltage: 12V; No-Load Speed: 25RPM; No-Load Current: 0.12A;Rated Torque: 6kg.cm;. Main Body Dimensions: 72 x 25mm / 2.84in x 0.99in (L*D); Out Shaft Dimensions: 11 x 4mm / 0.433 x 0.1575in (L*D) with 10 x 0.5mm / 0.39 * 0.017inches flat cut off;. Single Output 2604 Pulses Per Revolution: Gear Reduction Ratio: 1/217, Each Loop Output Pulses: 12PPR 217*12=2604PPR;. Wiring Diagram: Red - Motor power terminal (+); Black - Motor power terminal(-); Green - Quad encoder Ground; Blue - Quad encoder +5V Vcc; Yellow - Quad encoder A signal; White - Quad encoder B signal.. Application: Suit for Projects Such as Robotics, RC Car Model, Custom Servo, Arduino and 3D Printers, DIY Engine Toy..
