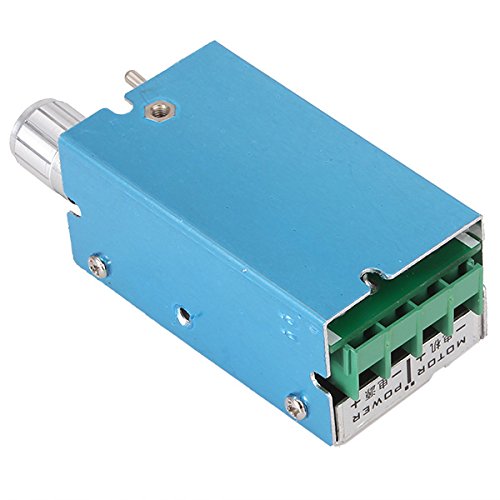

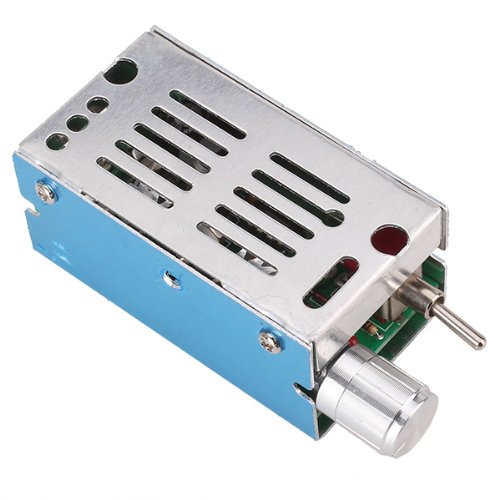

The motor speed controller incorporates a high power MOSFET with a heat sink and can easily provide a continuous current of 3A to your DC motor or other DC load. Specification: With switch function and Reversible control function Onboard 10A fuse, with Reverse power,Overvoltage,high current protection function Input supply voltage: 12V-40V DC(max) maximum output power: 120W maximum continuous output current: 3A overload and short circuit protecting current: 5A PWM frequency: 15kHz Duty Cycle adjustable: 10%-100% indicator: Power-On LED size: 70x39x31mm/2. 75x1. 54x1. 22" Net weight: 78g Package includes: 1 x PWM DC Reversible Motor Speed Controller Model # N08291 Features: PWM DC Reversible Motor Speed Controller Input supply voltage: 12V-40V DC(max) overload and short circuit protecting current: 5A The motor speed controller incorporates a high power MOSFET with a heat sink and can easily provide a continuous current of 3A to your DC motor or other DC load.
