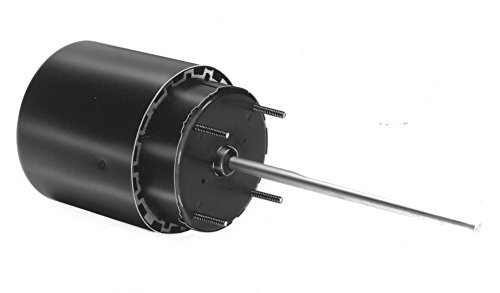

HVAC Motor, Shaded Pole, Totally Enclosed Fan-Cooled, Continuous, 1/20 HP, 3000 Nameplate RPM, 115/230 Voltage, 3. 3 Frame, Service Factor 1. 0, Full Load Amps 1. 7, 60 Hz, Rotation CCWSE, Insulation Class A, Max. Ambient Temp. 40 Degrees C, Number of Speeds 1, Mounting Stud, Ball Bearings, Thermal Protection Auto, Body Dia. 3. 3 In. , Shaft Dia. 5/16 In. , Shaft Length 6-1/2 In. , 4-5/8 In. , 4/SE, 2-7/8 x 2-7/8 In. , 1, Flat, HVAC/R, 2-7/8 x 2-7/8 Model # D215 Features: Price For: Each No. of Speeds : 1 Max. Ambient Temp. : 40 Degrees C Duty : Continuous Motor Sub Application : Direct Drive Fan/Blower Motor Mounting Type : Stud HP : 1/20 Phase : 1 Motor Service Factor : 1. 00 Frame : 3. 3 Shaft Dia. : 5/16" Item : HVAC Motor Motor Thermal Protection : Auto Motor Design : Shaded Pole Body Dia. : 3. 3" Motor Shaft Design : Flat Hz : 60 Motor Shaft Rotation : CCWSE Motor Enclosure Design : Totally Enclosed Fan-Cooled Motor Application : HVAC/R Length Less Shaft : 4-5/8" Mounting Pattern : 2-7/8 x 2-7/8 Voltage : 115/230 RPM Range : 1801-3000 Shaft Length : 6-1/2" Voltage Compatibility : 115, 120, 230, 240, 115/230, 120/240 Nameplate RPM : 3000 Mounting Stud Location : 4/Shaft End Full Load Amps : 1. 7/0. 80 Ins. Class : A Application : HVAC/R Motor Bearings : Ball Country of Origin (subject to change) : Mexico Item Dimensions: 12. 25" L x 3. 75" W x 3. 75" H.
