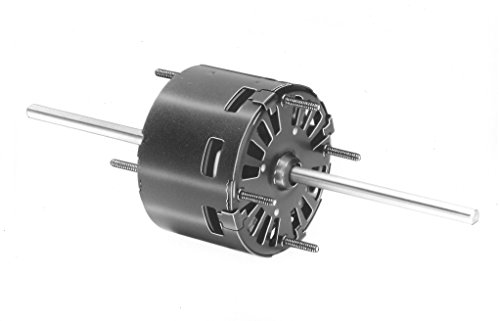

HVAC Motor, Shaded Pole, Open Dripproof, Continuous, 1/40, 1/50, 1/80 HP, 1500 Nameplate RPM, 115 Voltage, 3. 3 Frame, Service Factor 1. 0, Full Load Amps 1. 3/0. 90/0. 70, 60 Hz, Rotation CCWLE, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 3, Mounting Stud, Sleeve Bearings, Thermal Protection Auto, Body Dia. 3. 3 In. , Shaft Dia. 5/16 In. , Shaft Length 4 In. , 2-1/2 In. , 4/BE, 2-7/8 x 2-7/8 In. , 1, Flat, HVAC/R, 2-7/8 x 2-7/8 Model # d128 Features: Price For: Each Body Dia. : 3. 3" Motor Shaft Design: Flat Mounting Pattern: 2-7/8 x 2-7/8 Motor Service Factor: 1. 00 Frame: 3. 3 Motor Bearings: Sleeve Stud/Base Mtg. Pattern: 2-7/8 x 2-7/8" Phase: 1 Motor Mounting Type: Stud Max. Ambient Temp. : 40 Degrees C Motor Sub Application: Direct Dr Fan/Blower Application: HVAC/R Motor Application: HVAC/R Item: HVAC Motor HP: 1/40 Motor Thermal Protection: Auto Motor Design: Shaded Pole Duty: Continuous Shaft Length: 4" Hz: 60 Nameplate RPM: 1500 Full Load Amps: 1. 3 Motor Shaft Rotation: CCWLE Motor Enclosure Design: Open Dripproof No. of Speeds: 3 Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240 Length Less Shaft: 2-1/2" Mounting Stud Location: 4/Both Ends Shaft Dia. : 5/16" Ins. Class: B Voltage: 115 Country of Origin (subject to change): Mexico.
