Description:

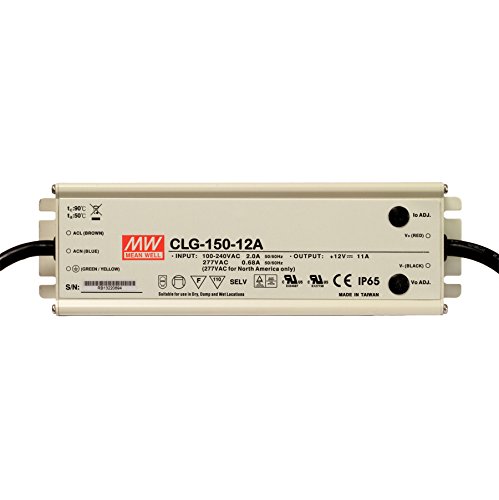

Features: Universal AC input / Full range (up to 295VAC) Built-in active PFC function High efficiency up to 91% Protections: Short circuit / Over current / Over voltage / Over temperature Cooling by free air convection OCP point adjustable through output cable or internal potentiometer IP65 / IP67 design for indoor or outdoor installations Suitable for LED lighting and moving sign applications Compliance to worldwide safety regulations for lighting Specification: Model:CLG-150-12A DC VOLTAGE:12V CONSTANT CURRENT OPERATION VOLTAGE:9 12V RATED CURRENT:11A RATED POWER:132W RIPPLE & NOISE (max. ) :150mVp-p VOLTAGE ADJ. RANGE:9 13V CURRENT ADJ. RANGE:Can be adjusted by internal potential meter. or through output cable 5. 5 11A VOLTAGE TOLERANCE:2. 0% LINE REGULATION:0. 5% LOAD REGULATION:1. 0% SETUP, RISE TIME:3000ms, 80ms at full load 230VAC /115VAC HOLD UP TIME (Typ. ):50ms / 230VAC 16ms / 115VAC at full load VOLTAGE RANGE:90 295VAC 127 417VDC FREQUENCY RANGE:47 63Hz EFFICIENCY (Typ. ):88% AC CURRENT (Typ. ):2A / 115VAC 1A / 230VAC INRUSH CURRENT (Typ. ):COLD START 65A/230VAC LEAKAGE CURRENT:.
