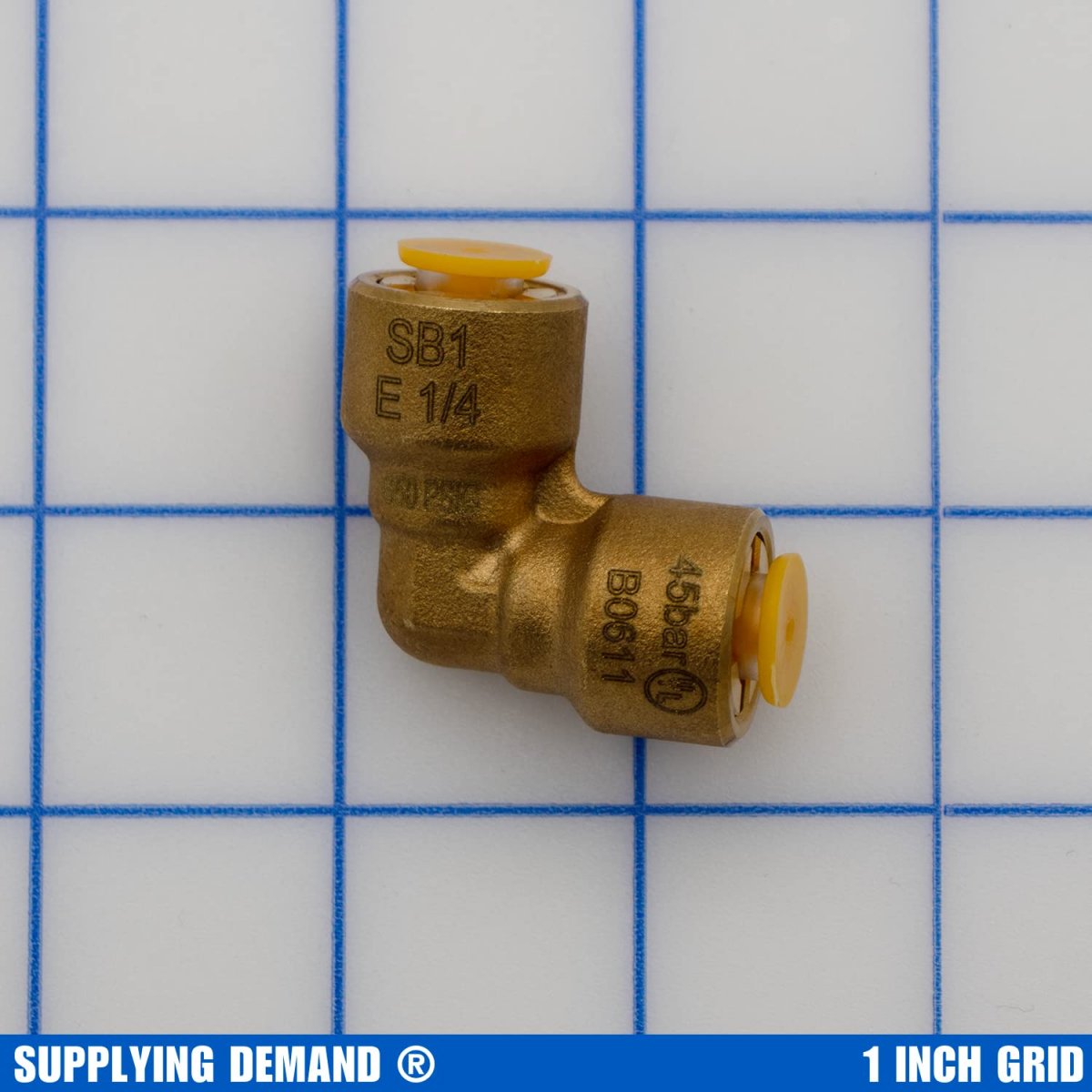

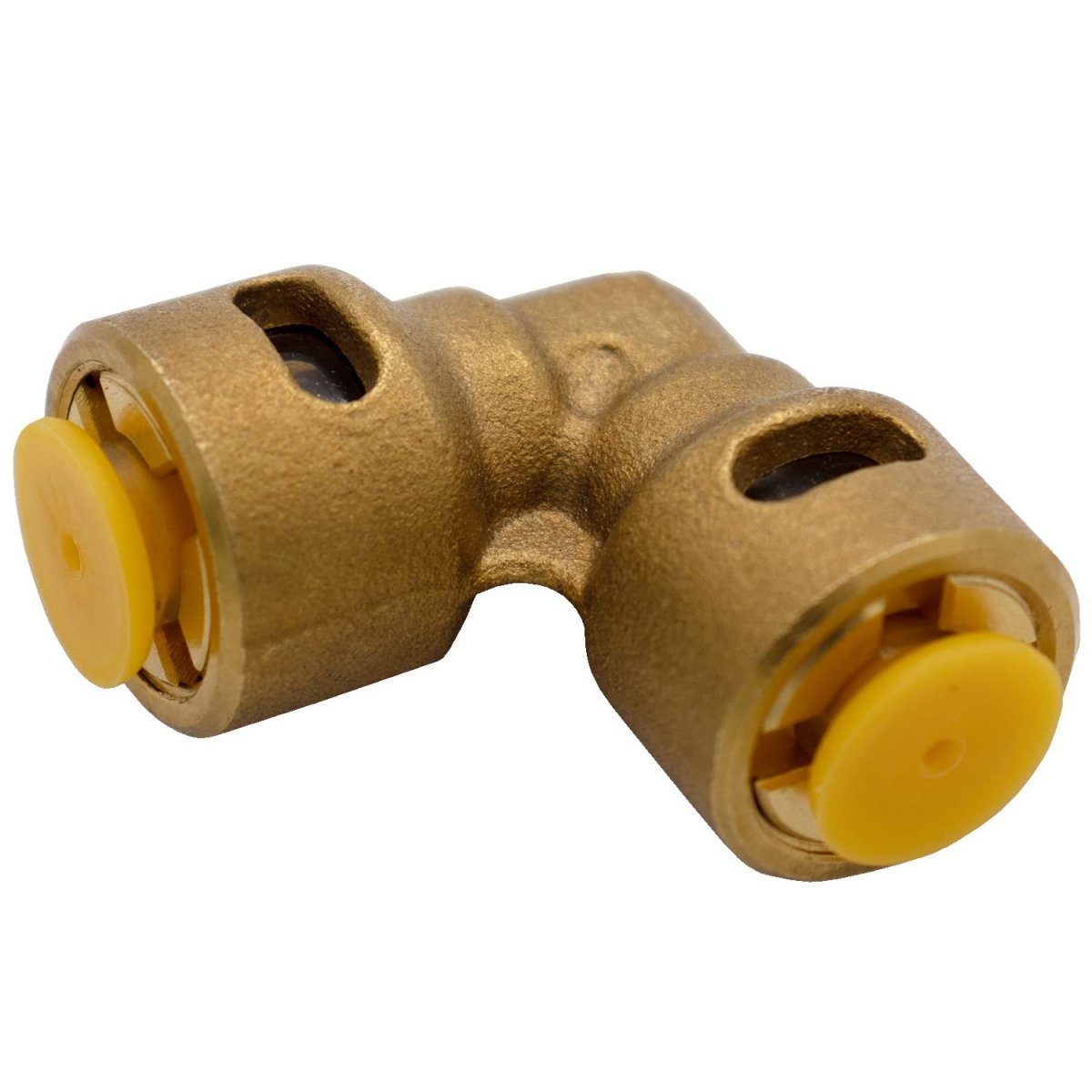

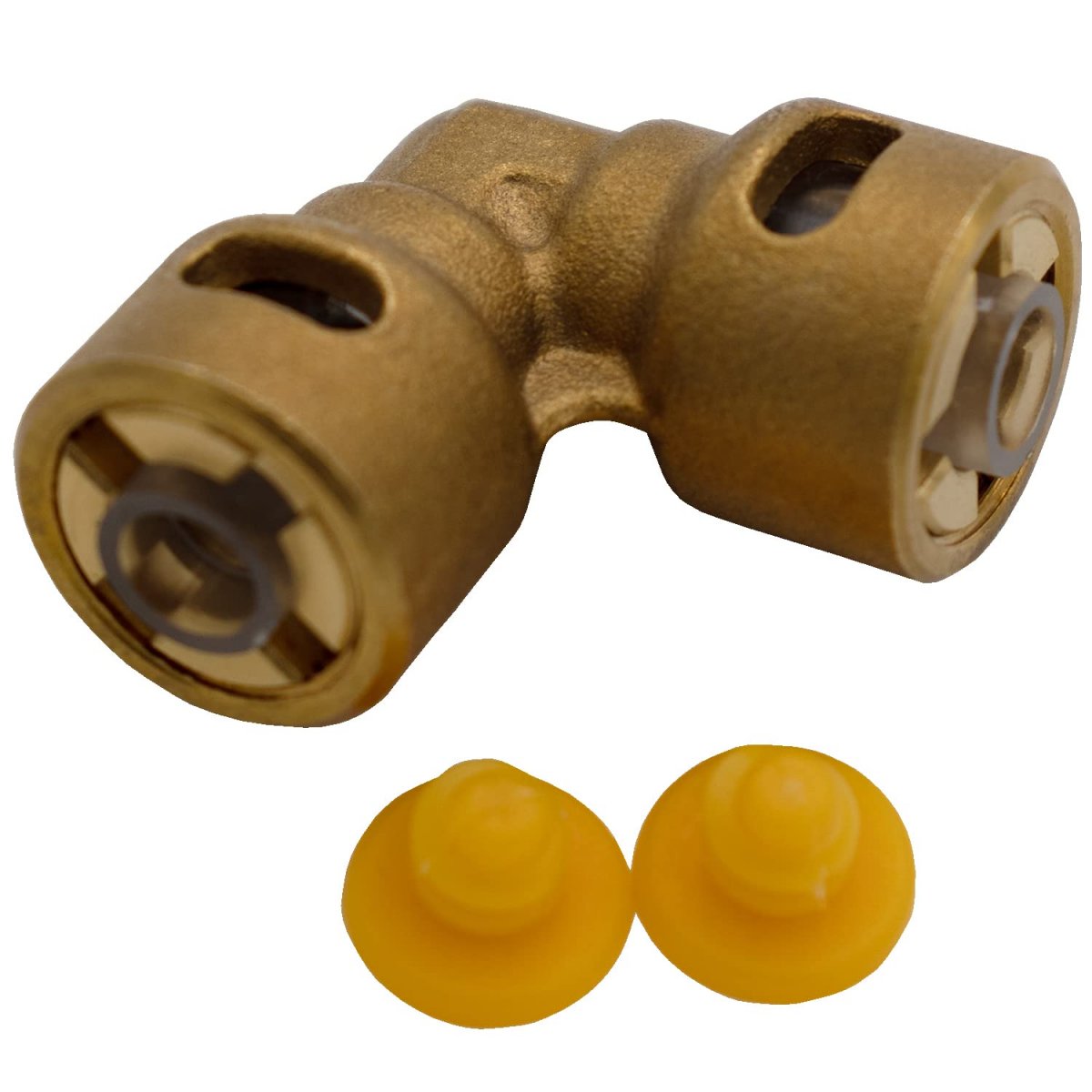

1/4 Inch 90 Degree elbow No brazing, tools or nitrogen purge needed for installation C3771 brass body. Approved for hard drawn copper: 1/4 - 7/8 Inch type ACR, M, L, K Approved for hard soft copper (annealed): 1/4 - 7/8 Inch type ACR, L, K. Type: 90 Connection thread: None Outside diameter (inch): 0.787 Length (inch): 1.161 Connection size (inch): .250 O-Ring material: Chloroprene Fitting material: C3771, polycarbonate Vacuum pressure capability: 30 Microns Minimum burst pressure: 3600 PSI / 250 Bar Maximum rated pressure (MRP): 870 PSI / 60 Bar O-Ring temperature: -40F / 250F (-40C / 121C) Continuous operating temperature: 250F / 121C. Supplying Demand replacement parts are compatible with Major Brands, but you should always verify fitment with your specific application.. SD products come in Supplying Demand packaging..
