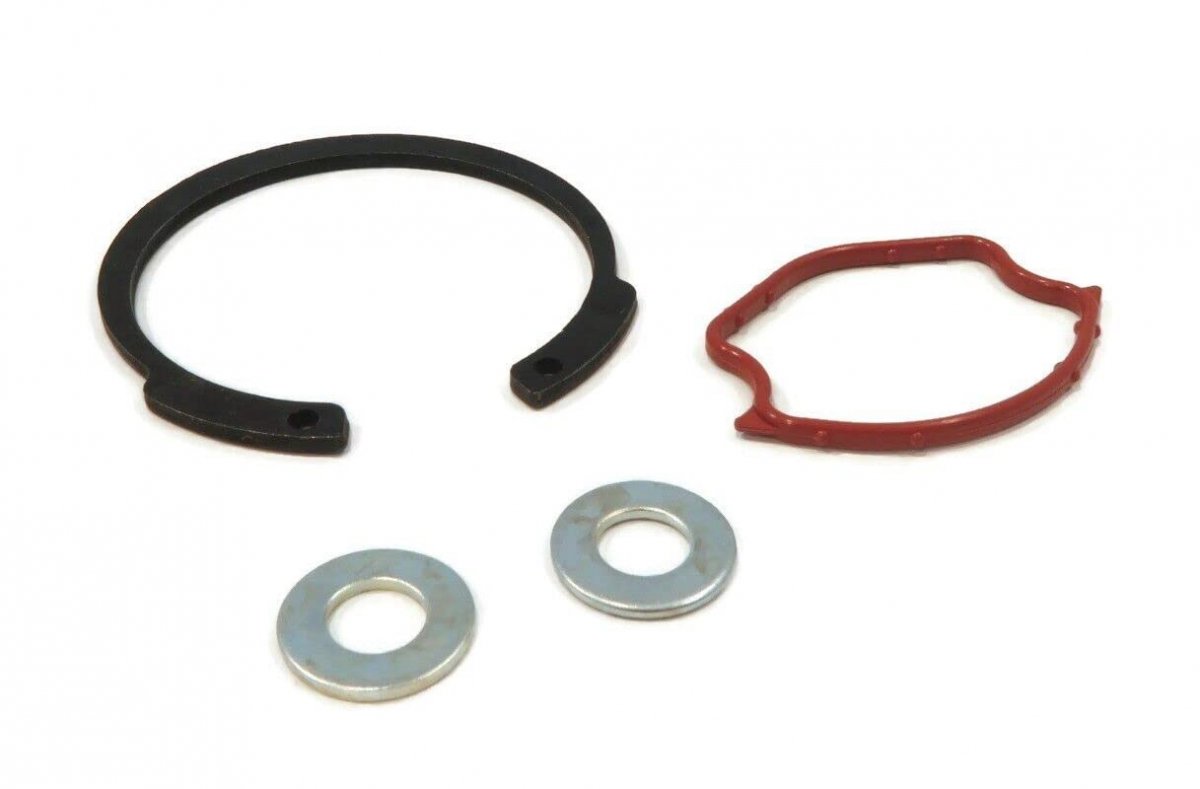

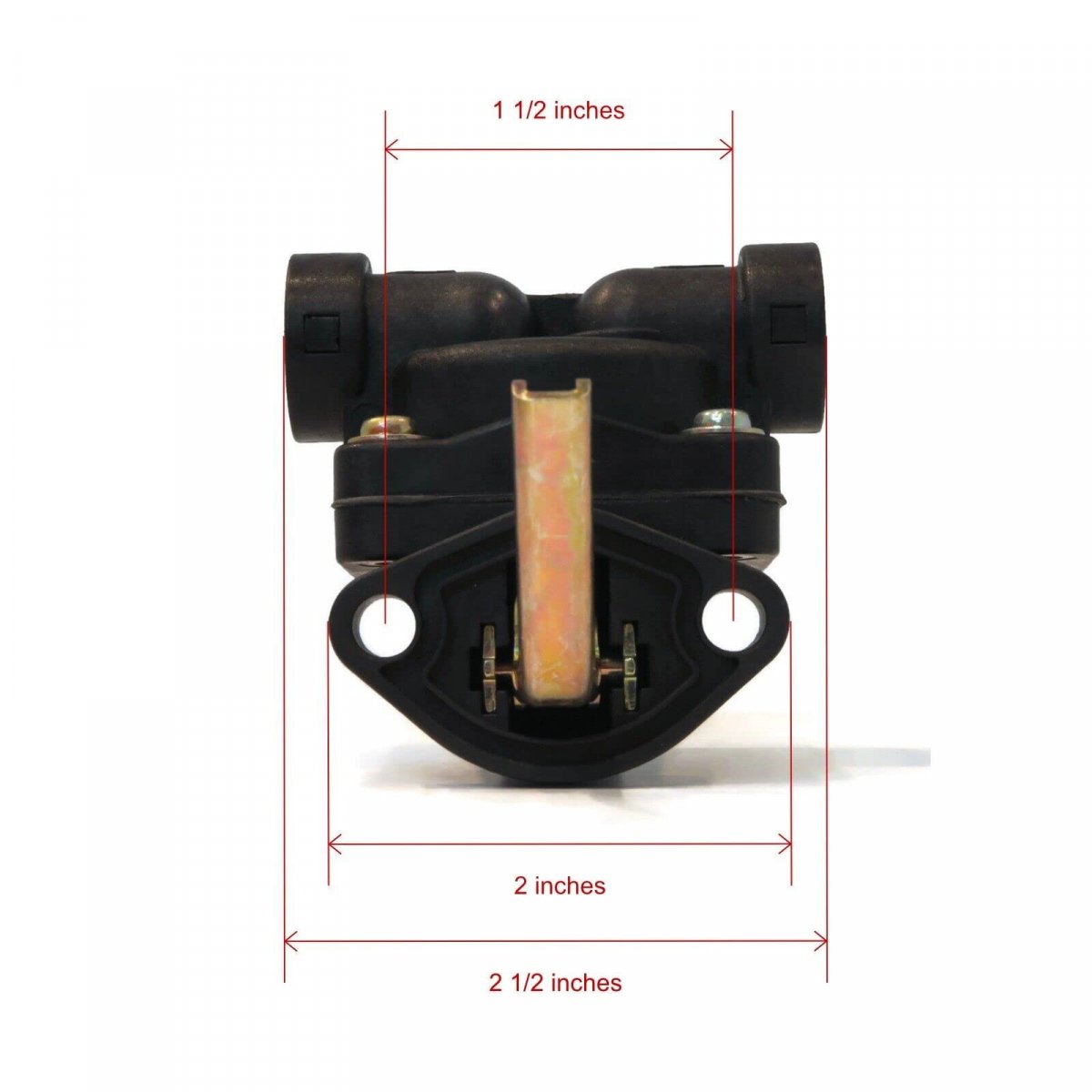

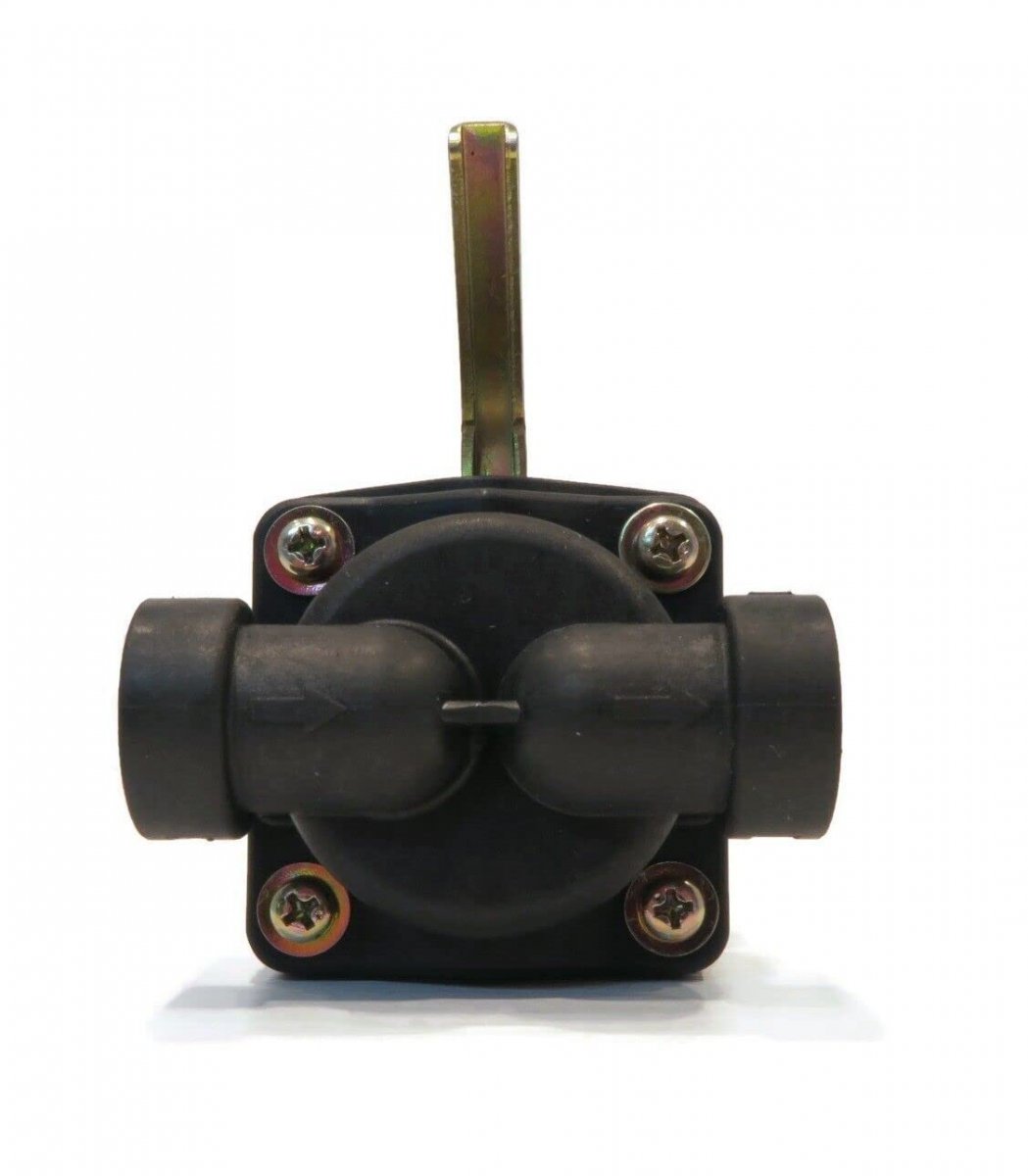

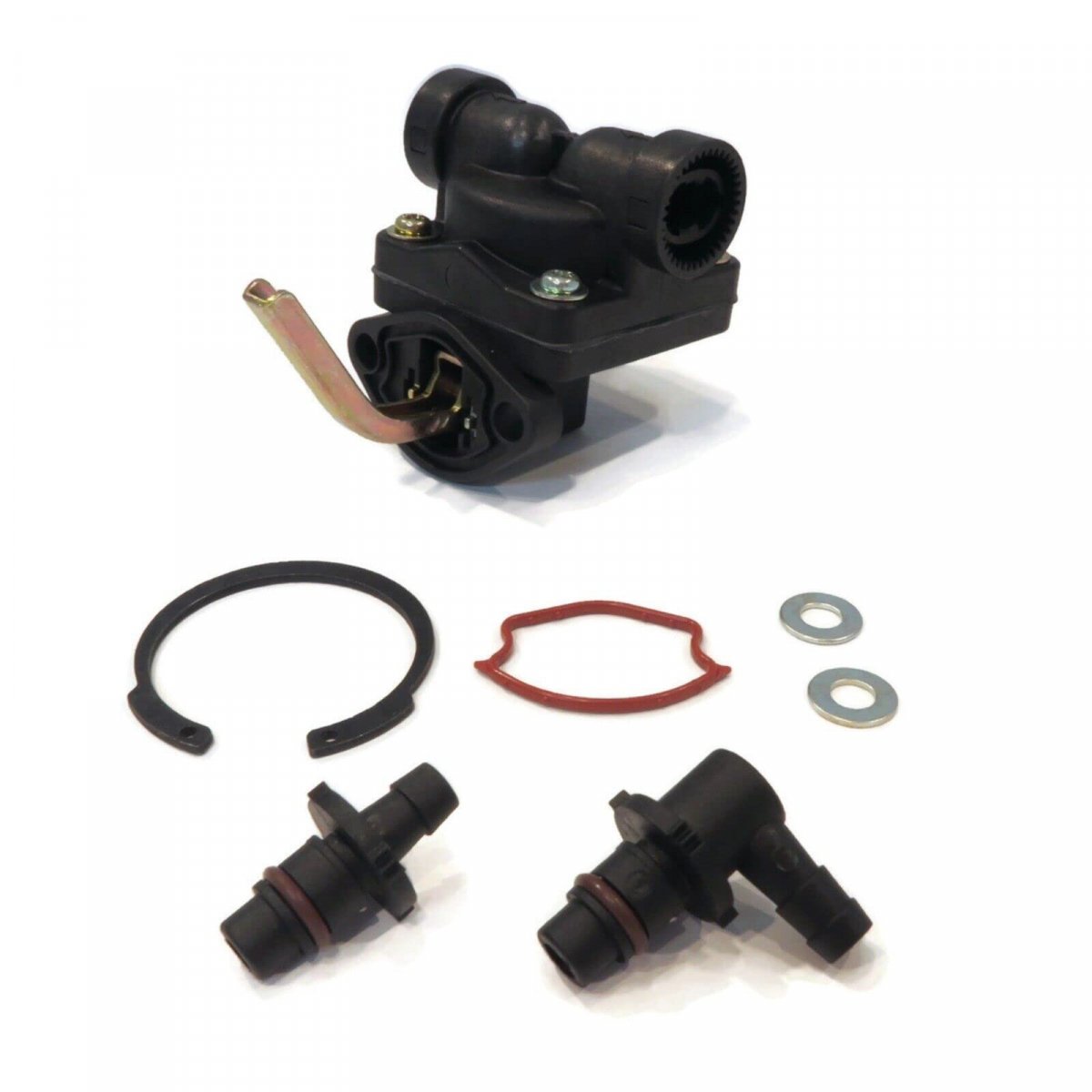

The ROP Shop replacement Fuel Pump Kit for John Deere AM134269, AM34743, AM37178, AM37539 Gas Engine. Specs - Arm Length: 1 5/8". Inlet & Outlet at a 90 to arm. Twist lock fit. Material: Plastic. Refer to images 2 & 3 for more information. Includes - (1) Fuel Pump, (1) Snap Ring (tool), (1) O-Ring, (2) Fittings (Inlet & Outlet), (2) Flat Washers & Installation Instructions; comes as shown in the first image. Fits 1/4" inner diameter fuel line. Fuel flows right to left. NOT compatible with greater than 10% ethanol fuel. Inlet & Outlet fittings must be installed on the new fuel pump before mounting. The pump housing incorporates a special locking feature to retain the fittings. The release tabs must be depressed when the fittings are installed or removed otherwise damage to the fitting and/or o-rings may occur and create a potential fuel leak. DO NOT attempt to install or force the fittings into place without first depressing the tabs. The enclosed snap ring will serve as a tool for this purpose.
