Description:

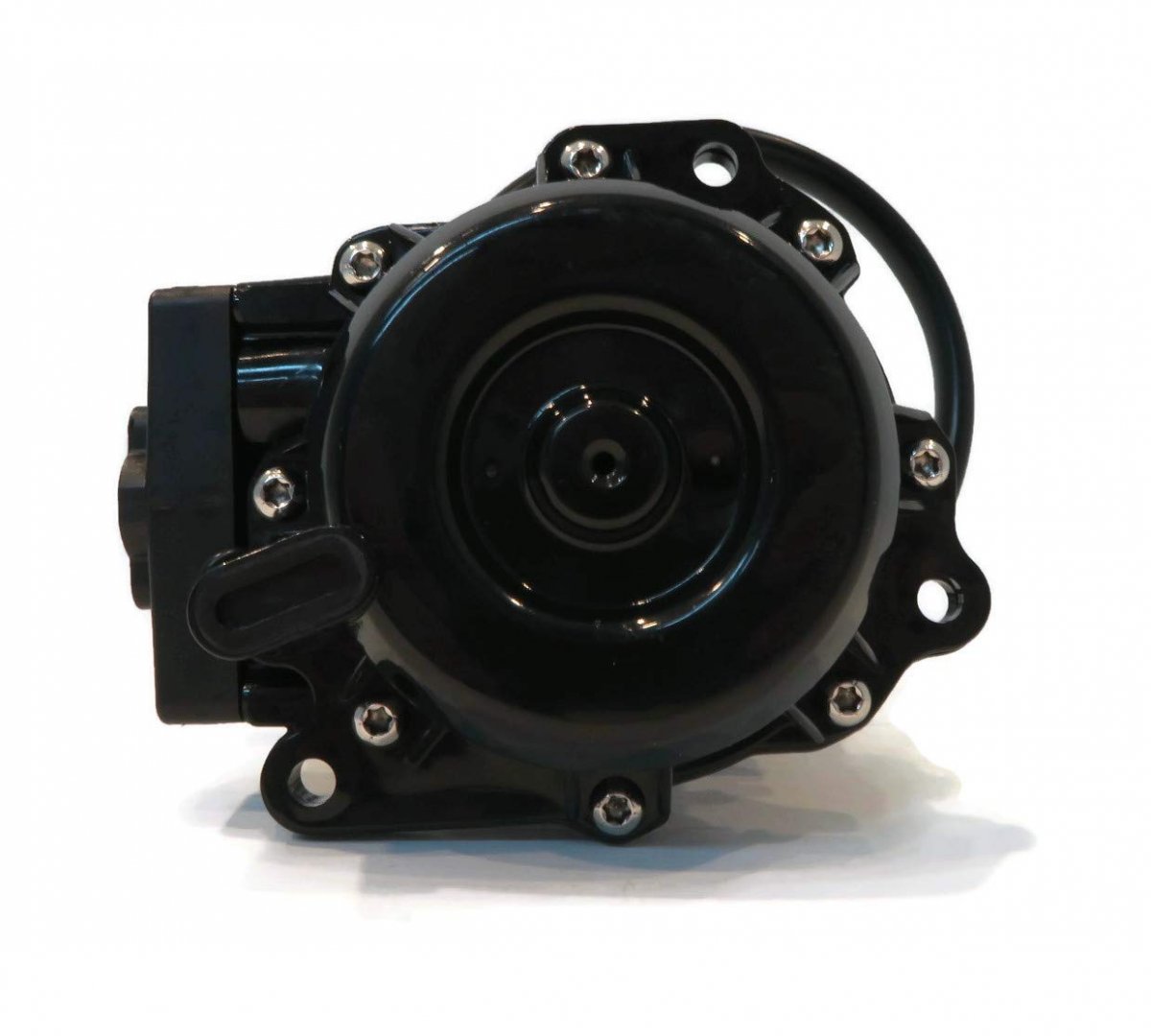

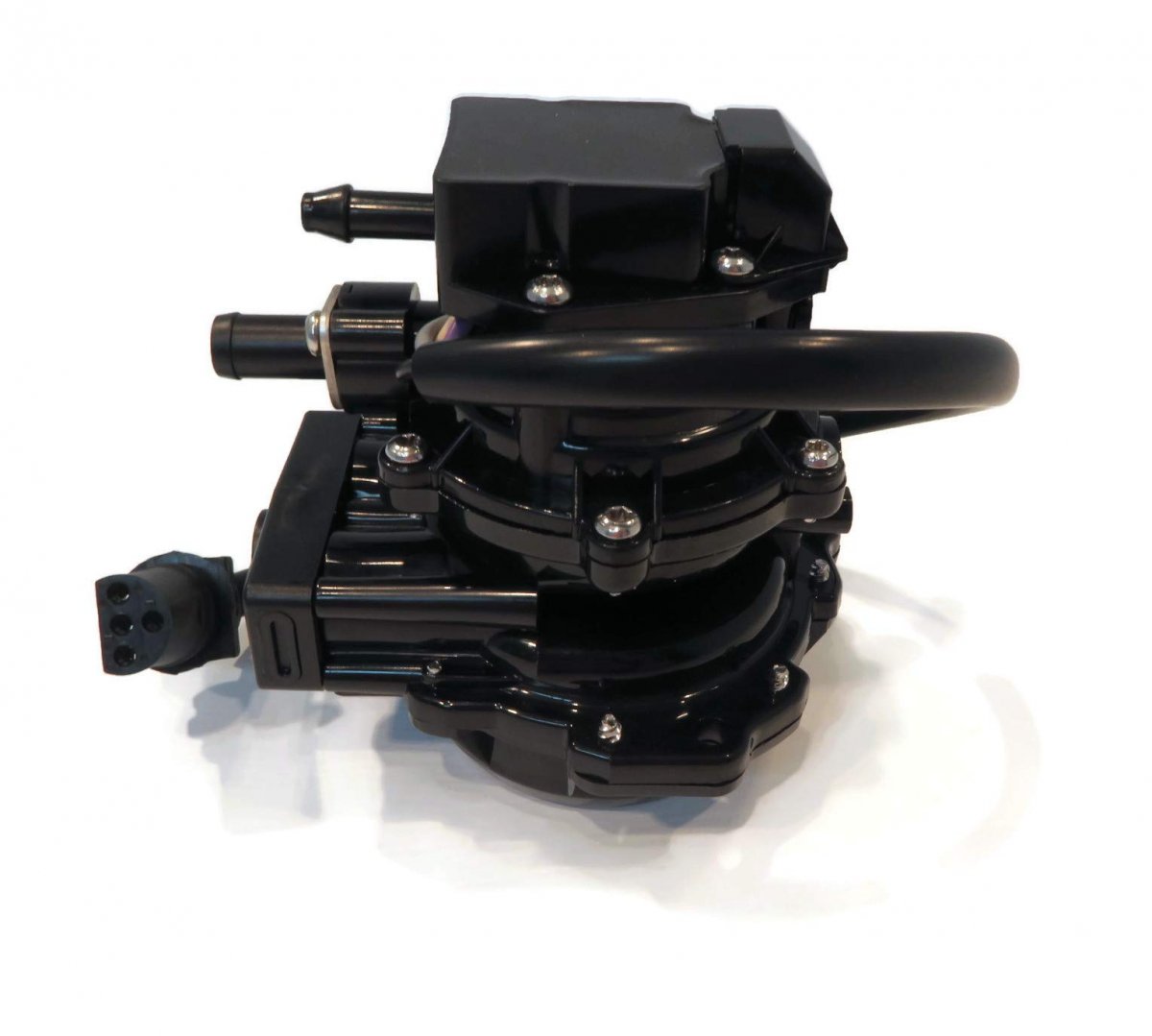

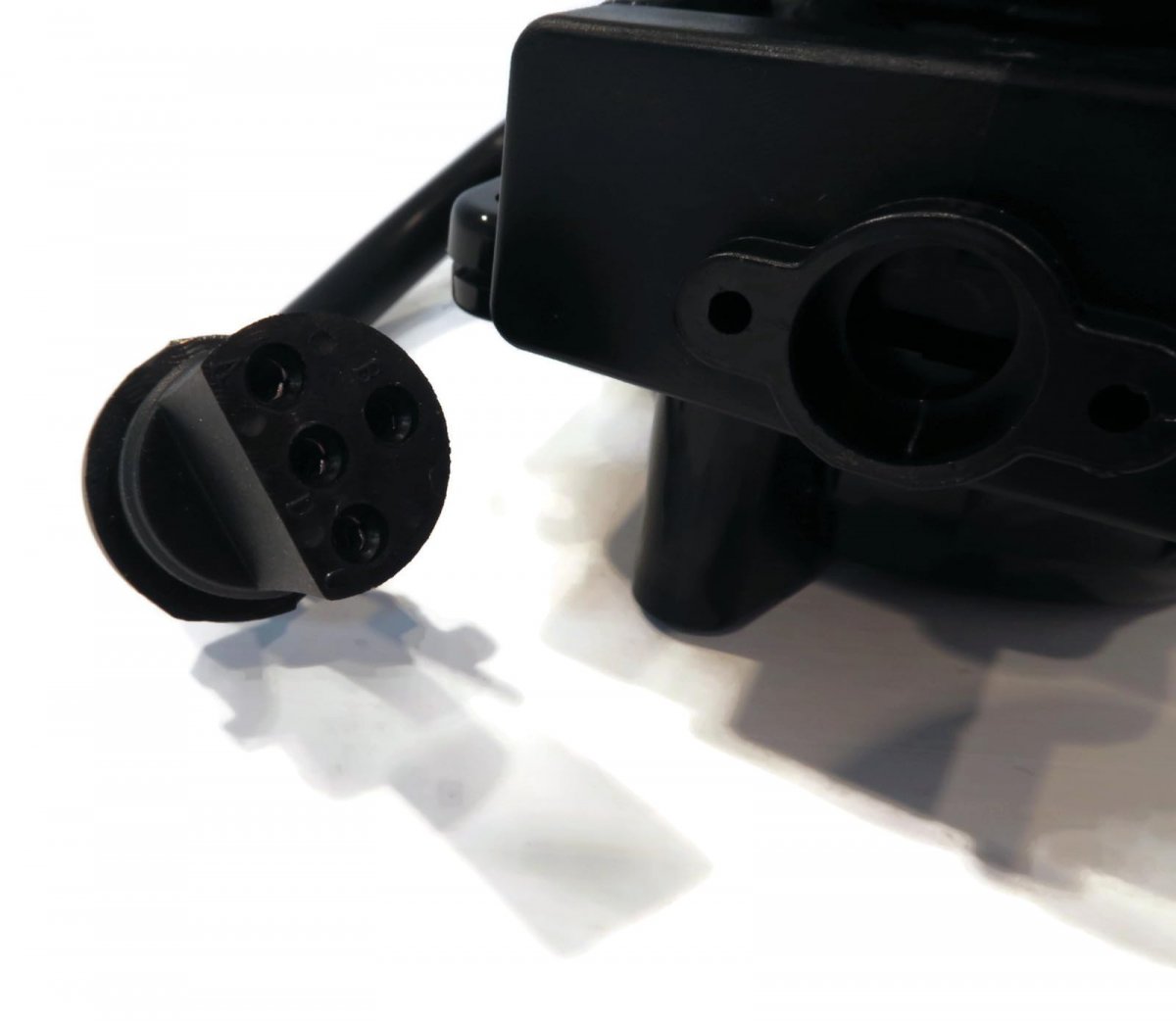

The ROP Shop replacement Fuel Pump Kit for Johnson, Evinrude 0174427, 174427, 0174434, 174434 Boat Engine. Specs - 4-Wire Pump, but is used to replace 3-wire pumps EXCEPT 2 cylinder engines. Refer to image 2 for more information. Includes - (1) Fuel Pump, (1) Connector and Lead, (2) Molded Hoses, (1) Socket Terminal, (1) Socket Plug, (1) Fuel Outlet Fitting, (2) Ratchet Clamps, (3) Tie Straps, (1) Thin O-Ring, (1) Thick O-Ring, (1) Threaded Pulse Limiter; comes as shown in the first image. Includes - (1) In-line Pulse Limiter, (1) Crankcase Fitting, (1) Pulse Fitting, (1) Small Retainer, (1) Small Retainer Screw, (1) Large Retainer, (1) Large Retainer Screw, (1) Connector Retainer, (2) Pin Terminals, (1) Pin Receptacle; comes as shown in the first image. Note: If motor does not have wiring for "NO OIL" warning, harness (174710) is needed. For CR and CO (1984 - 1985) cross scavenged V6 outboards with original pumps (did not have "NO OIL" warning) will need bracket (331122) to provide clearance for "NO OIL" circuitry on new pump. (Harness and Bracket are NOT included).
