Description:

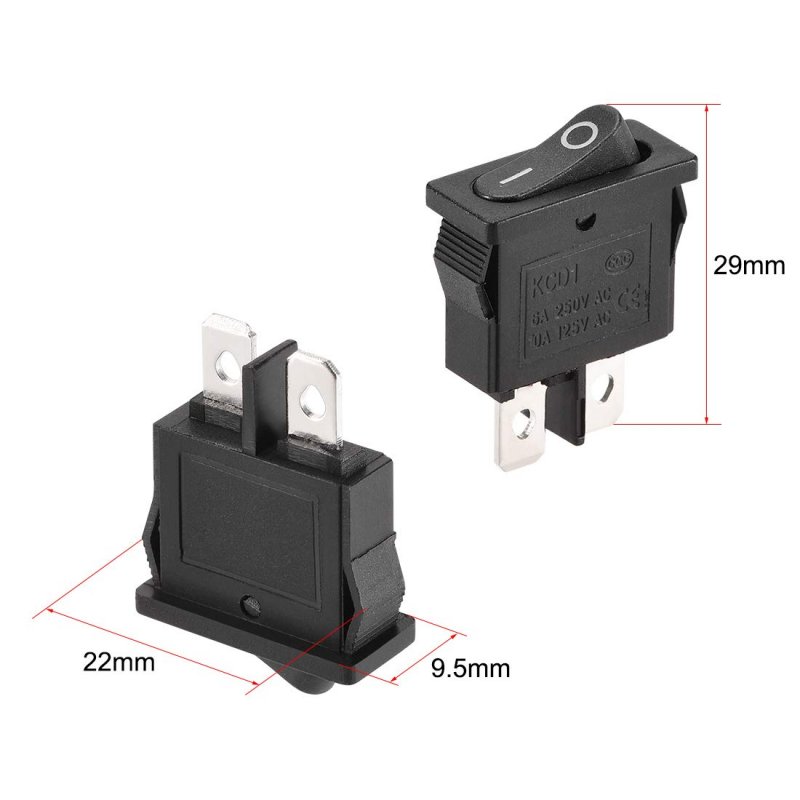

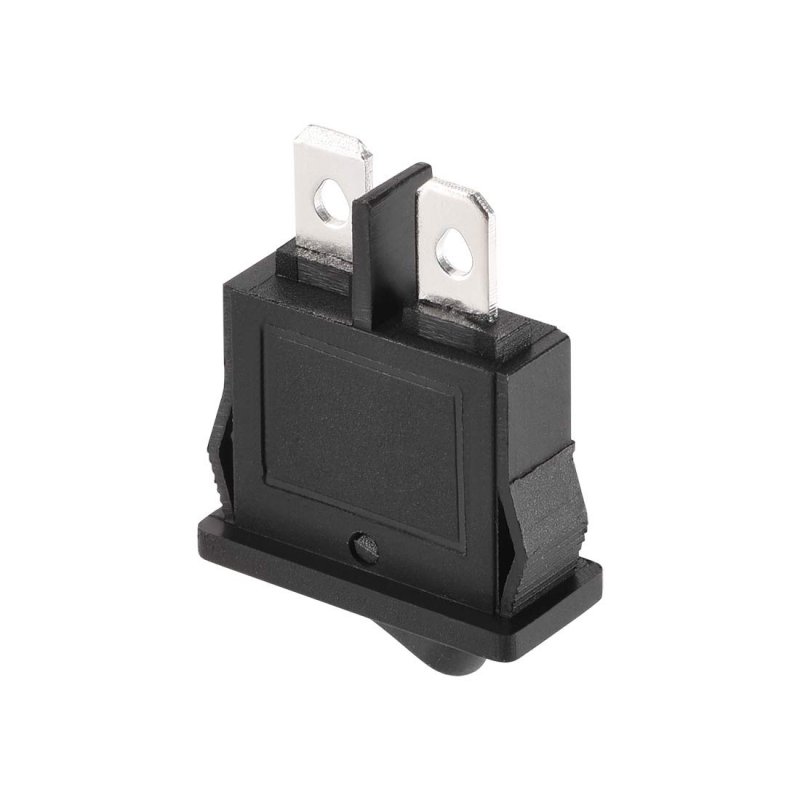

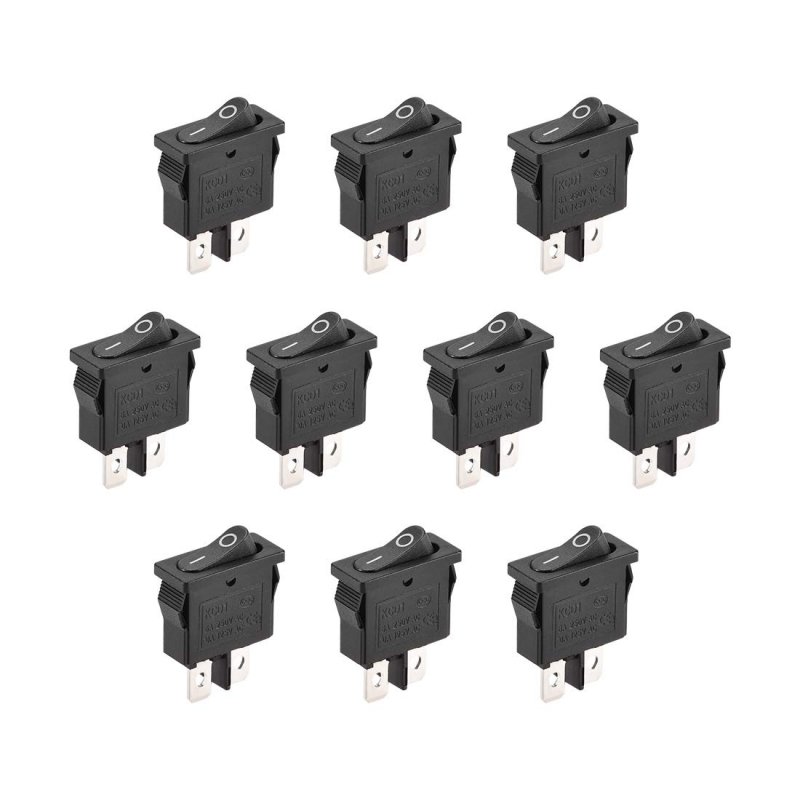

Wide ApplicationThis mini rocker switch is widely used for various kinds of household appliances and DIY power control ,such as , boat, truck , panel DIY control, lights, water dispenser, generator, coffee pot, speaker,TV, and breadboard DIY power control.. Product SpecificationControl Type:SPST;Terminals: 2Position: 2 ON/OFFRating Voltage: AC 250V/6A 125V/10ALight Voltage: NO light includeTotal Size ( size measuring do not include the Waterproof case):22*9.5*29mmL*W*H)Mounting Size: 19*6.5mm(L*W);Action Type: Latching.. Easy InstallationJust drill or cut an appropriate hole for the mounting size. When mounting into a panel, apply equal pressure to sides of bezel and insert parallel to panel.. Quick-recognized CodesUse the mark,"I - O ", to represent the 2 position of the switch. It is easy to recognize the positions in operation.. AttentionSelect the appropriate soldering iron to speed up the soldering. It is recommended to use 20W soldering iron to complete the soldering within 3 seconds. The flux must be in proper amount. When soldering, try to turn the switch pin down..
