Description:

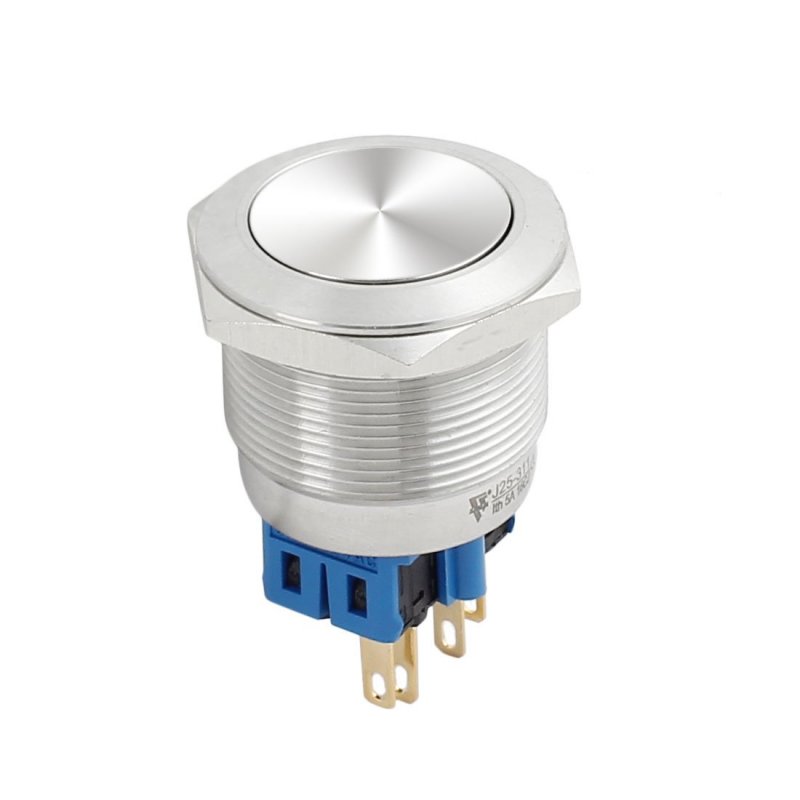

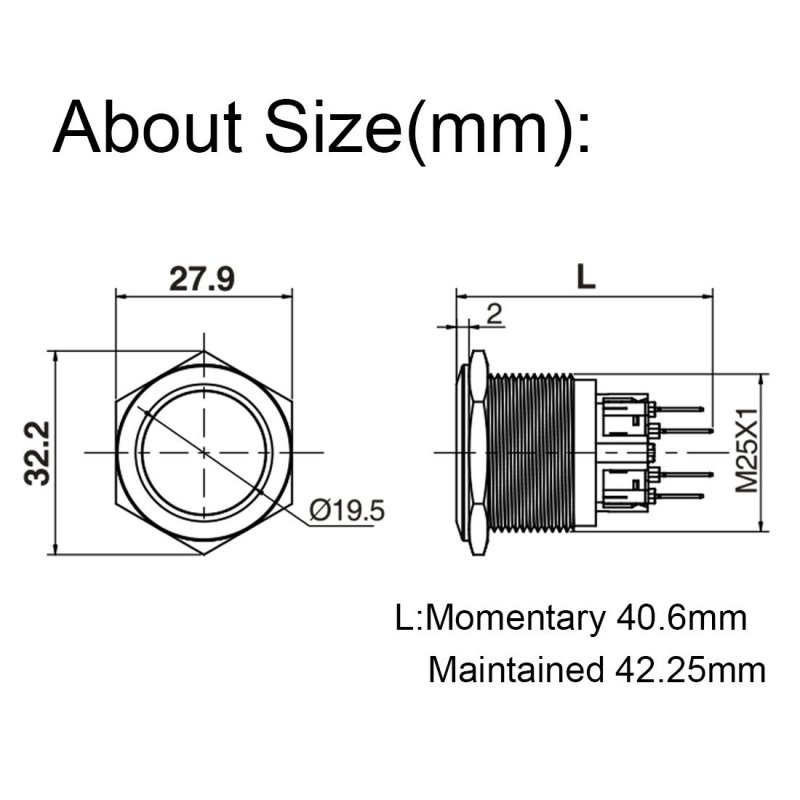

Oeperation Type: Latching;Contact Type: 1NO+1NC; Current: 5A; Voltage: AC 250V;Install Style: PCB Type. Product Material: Stainless Steel, Electric Parts;Net Weight :39g;Total Size: 42 x 32mm/1.65" x 1.25"(L*Max.D). Main Color: Silver Tone; Cap Type: Flat Round; Terminal Quantity: 4; Thread Diameter: 25mm. Operating Temperature: -25C to +55C; Operating Humidity: 45 to 85%RH;Protection Rating: IP67. Contact Resistance: 50Mohm Maximum; Insulation Resistance: 100Mohm Minimum;Package Content: 1 x Push Button Switch.
