Description:

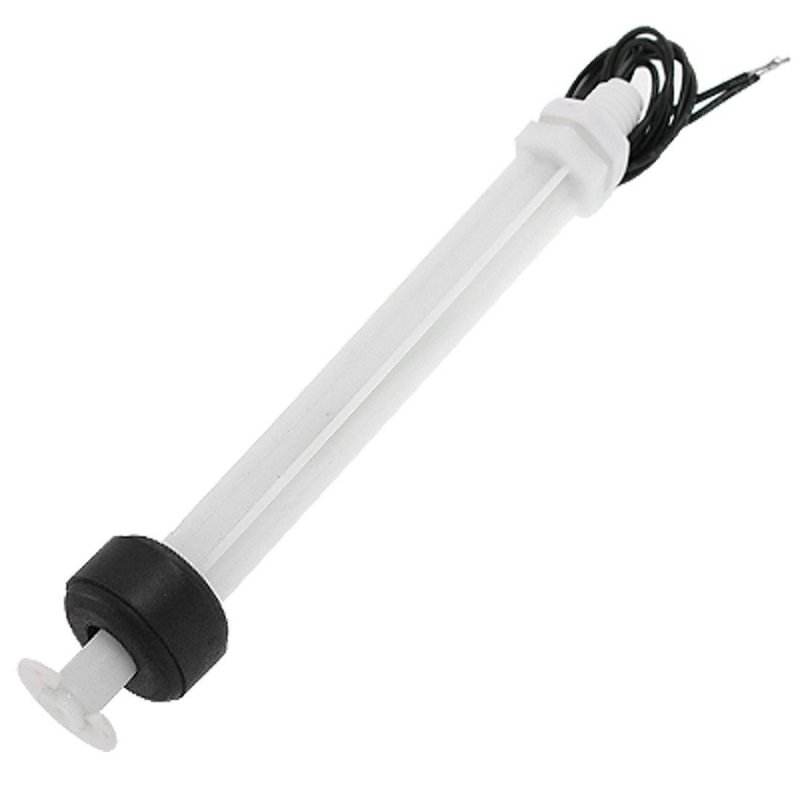

Product Name : Oil Level Sensor Switch;Contacts : NO+NC;Max Contact Rating : Max Contact Rating;10W : 10W. Max Switching Voltage : DC 100V;Max Switching Current : 0.5A;Max Contact Resistance : 100 ohm;Temperature Rating : 120C. Float Ball Material : PP;Float Body Material : PP;Float Ball Size(Approx) : 15 x 25.5mm / 0.59" x 1"(L*D);Thread Dia(Approx) : 9.5mm / 0.374". Hex Nut Size(Approx) : 17mm / 0.669";Bottom Clip Dia(Approx) : 16mm / 0.629";Body Total Length : 150mm / 5.9";Cable Length : 35cm / 13.8". Color : White, Black;Net Weight : 19g;Package Content : 1 x Oil Level Sensor Switch.
