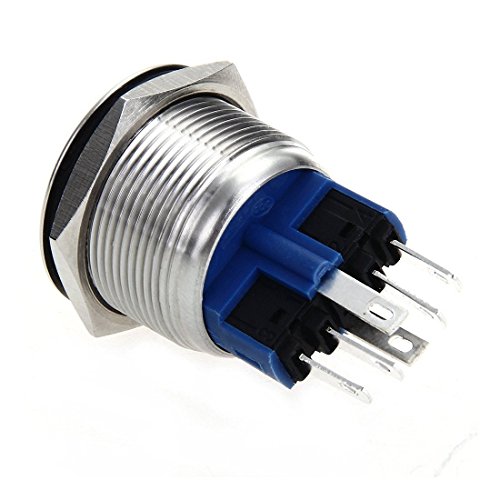

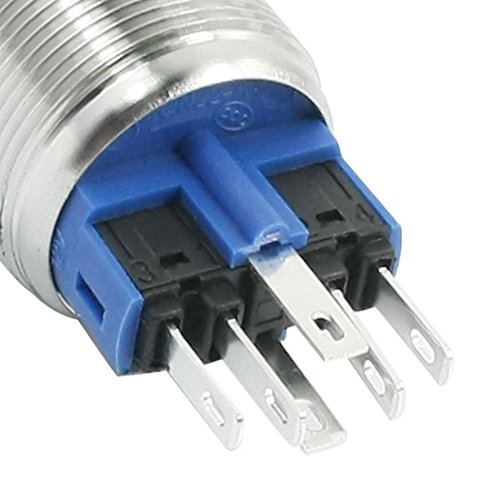

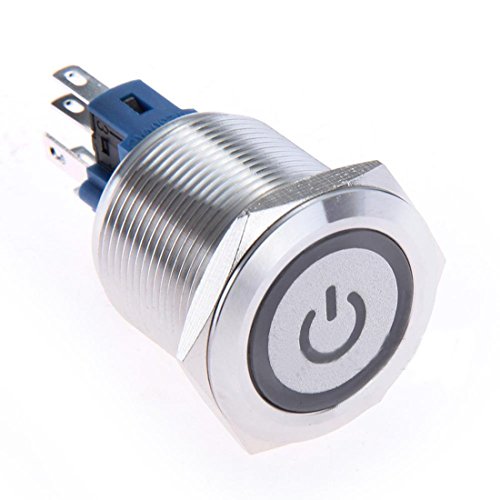

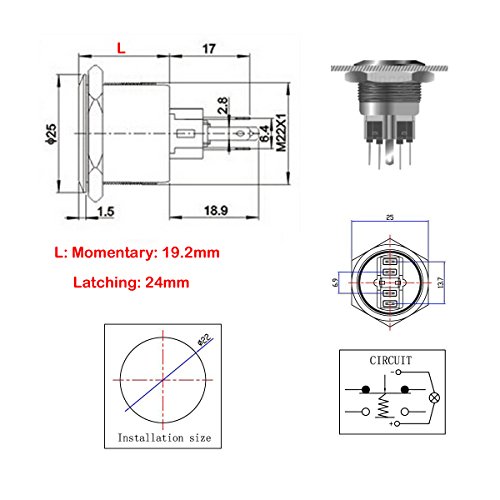

Introduction: It is a perfect choice if you are in need of a heavy duty push button! This switch is a very tough, small, panel-mount momentary switch with an illuminated LED. It can be used for basic On/Off functions perfectly. The switch is rated up to 5A and 250VAC while the LED is rated for 5-12V. Momentary switch Momentary switches only remain in their on state as long as theyre being pressed. Widely Use Widely used in various additional electric equipment, relay, inside & outside the car(Such as critical lights, foglight, dome light) or any circuit controls -- any application you can think of! The switch is IP67 rated, it is also an anti dust and waterproof one which makes it great for outdoor use. Specification: - Tail configuration: Connection terminal(2. 8 X 0. 5) - Switch Rating: 5A/250VAC - Contact resistance: 50m - Insulation resistance: 1000m - Dielectric intensity: 2000VAC - Operation Temperature: -20 +55 - Mechanical life: 500,000 cycles - Electrical life: 50,000 cycles - Panel thickness: 1 - 10mm - Nut torque: 5 - 14Nm - Operation pressure: About 3 - 5N - Operation stroke: About 2. 5mm - Protection level: IP67, IK10 - Mounting Cut Hole: 22mm - Head Diameter: 25mm - Operation Type: Momentary - Switch Contact: 1NO 1NC - LED Rating: 15mA, AC/DC 12V - LED Pattern: Power Indicator + Ring - LED Color: White - Contact Material: Silver alloy - Button Material: Stainless Steel Packing Include: 1 x push button switch Note: - These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater. - Dont let current go above 5A, or the switch will get warm and to be burned out. Features: Momentary switch: Push & Hold,ON; Release,OFF. and , mechanical life for 500,000 cycles. Degree of protection: IP67, IK10 Mounting hole size: 22mm; Head Diameter: 25mm; Head shape: Flat; Enclosure material: Stainless Steel Switch rating: 5A/250V AC; LED rating: 15mA, AC/DC 12V; The switch and LED are separated, LED can be on all the time or only on when switch is on,depending on how you wire it. Widely used in for various additional electric equipment, relay, inside & outside the car(Such as critical lights, chassis lamp, fog lamps, dome light) or any circuit controls. E-packet post from China (715 Days to US), comes with tracking number.
